MULTIPLE CONTROLS PACKAGES TO UNLOCK THE FULL EQUIPMENT SPECTRUM
Fractal EMS has several configuration options to allow you complete freedom in designing you asset across different brands of batteries and BOP components.

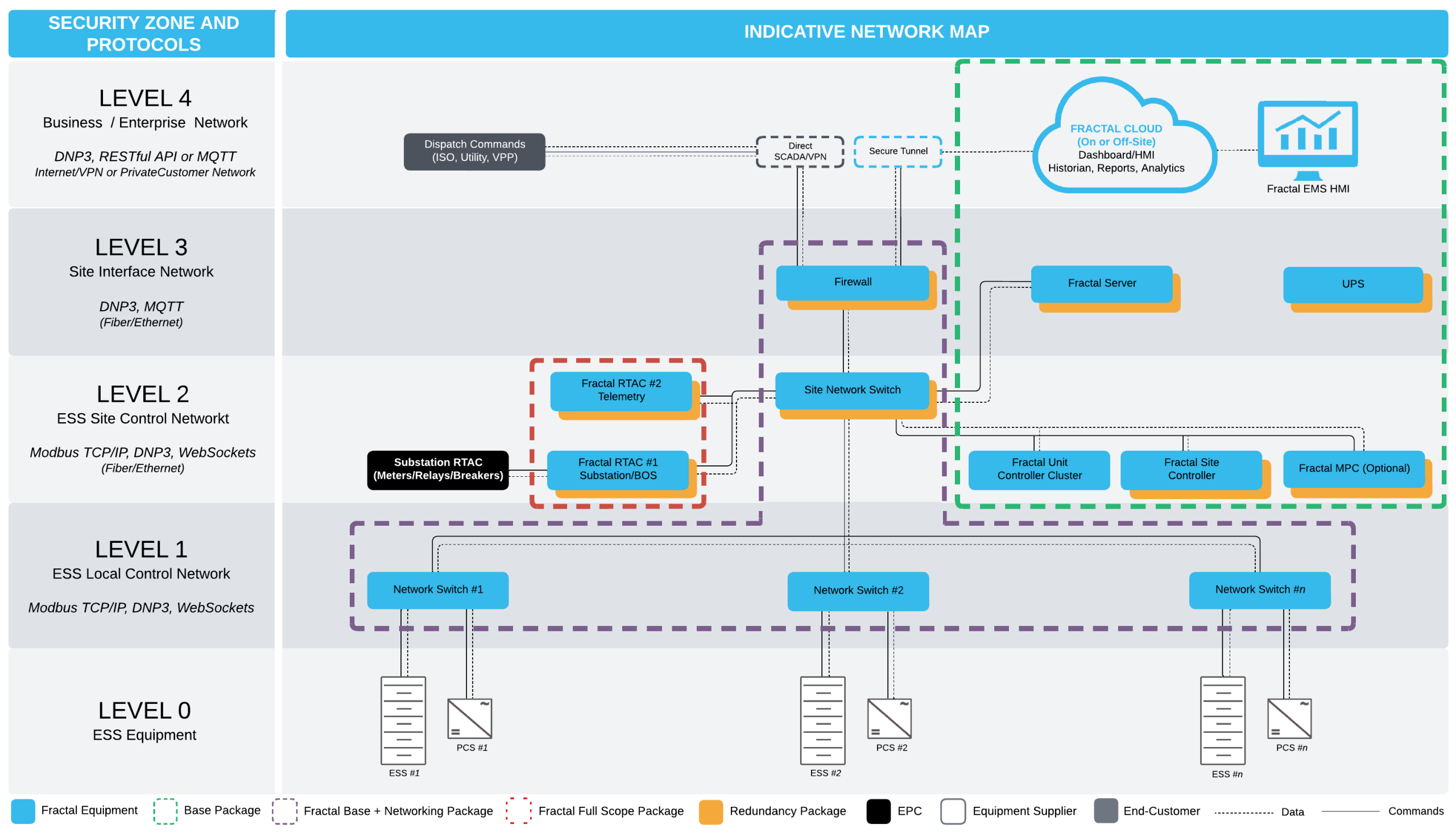

Suitability: Designed for projects using any battery system that does not provide a local or site controller combined with any PCS.
Fractal EMS’s scope:
- EMS Hardware: Fractal provides the hardware for FNEs, controllers (unit, site, optional MPC), local server, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMIs with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points directly from the equipment.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.
Select from any brand of Containerized Battery to include: A123, ATESS, ATL, BatteroTech, BYD, CALB, CATL, COSPOWERS, CRRC, Cube Energy, Dongguan, ECO Power, Eneon, Envision, E-Storage, EVE Energy, EVLO, Goldwind, Gotion, Great Power, Hithium, Hyperstong, IPotisEdge, JinkoSolar, Kore Power, Narada, RelyEZ, REPT Battero, Samsung, Shoto, Sinexcel, Sunwoda, SVOLT, SYL, Trina, Topband, Woolong, Zentech, etc.
Select from any brand of storage inverters to include: PE, SMA, EPC Power, Dynapower, Ingeteam, Kehua, Huawei, CRRC, Sinexcel, etc.

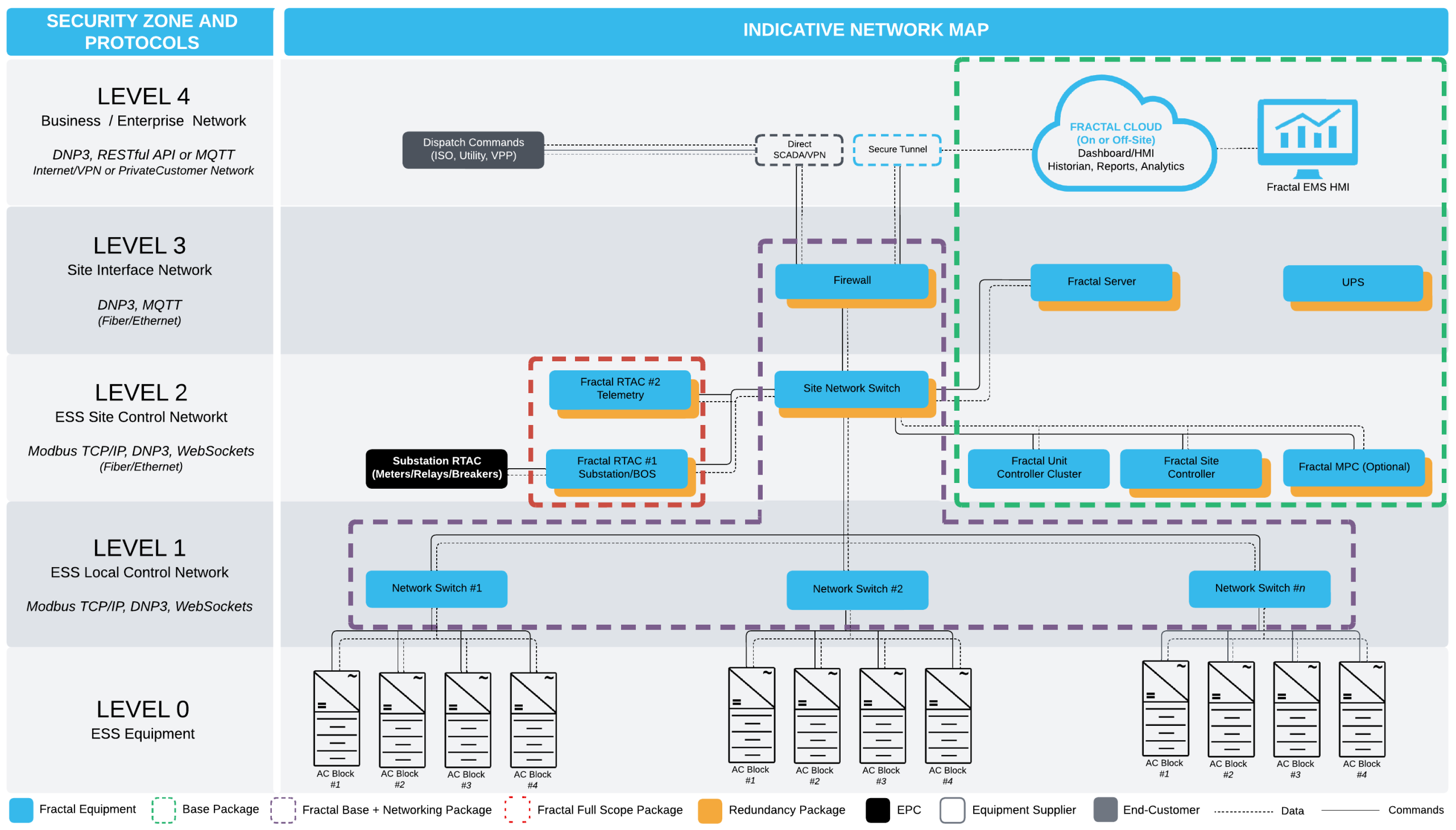

Suitability: Designed for projects using a battery container and PCS that is pre-integrated with a local controller.
Although the OEM provides a local controller, Fractal still provides a unit controller and maintains the majority of the EMS scope. Fractal EMS provides:
- EMS Hardware: Fractal provides the hardware for FNEs, controllers (unit, site, optional MPC), local server, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) most of the communication (OEM provides unit-level communications).
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMIs with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points through the OEM local controller.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.
Select from any brand of Containerized Battery + PCS supplier to include: Sungrow, LSES, Clou Electronics, etc.

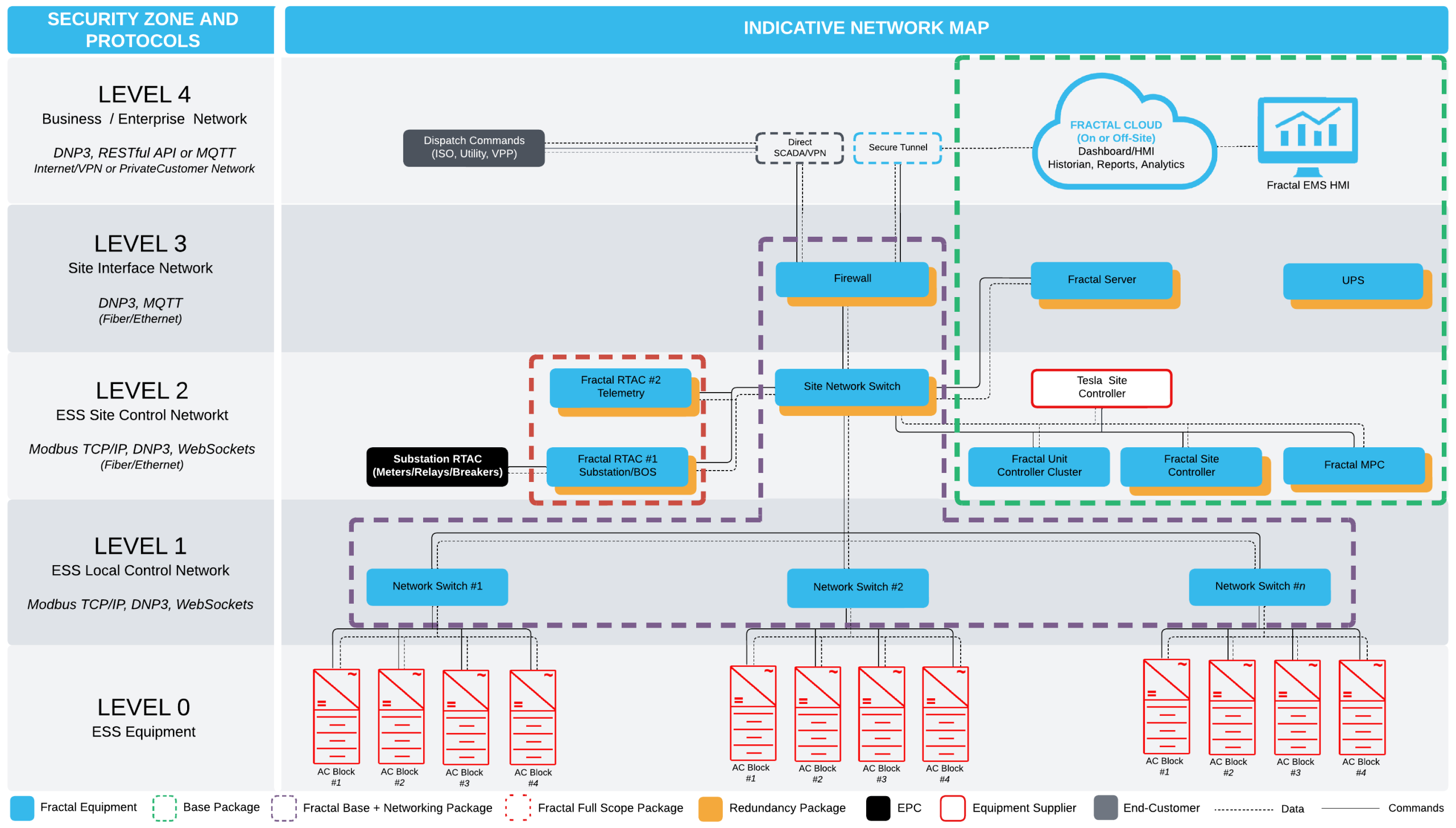

Suitability: Designed for projects using a battery system that is pre-integrated with a site controller.
Due to the OEM-provided site controller, Fractal does not provide unit-level (inverter, batteries, thermal management, and fire system) or site-level communication and coordination. Fractal issues a site-level power command using an MPC. The OEM’s site controller decides how to distribute power between the units. Fractal EMS provides:
- EMS Hardware: Fractal provides the equipment for FNEs, MPC controllers, local server, communication devices, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMIs with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points through the OEM site controller.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.
Select from any BESS Equipment Vertical to include: Tesla, AESI, Powin, etc.
Suitability: Designed for standalone Solar PV projects. Fractal EMS provides:
- EMS Hardware: Fractal provides the hardware for FNEs, site controller, local server, communication devices, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMIs with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points through the OEM equipment.
- O&M: Fractal provides options for 24/7 monitoring.

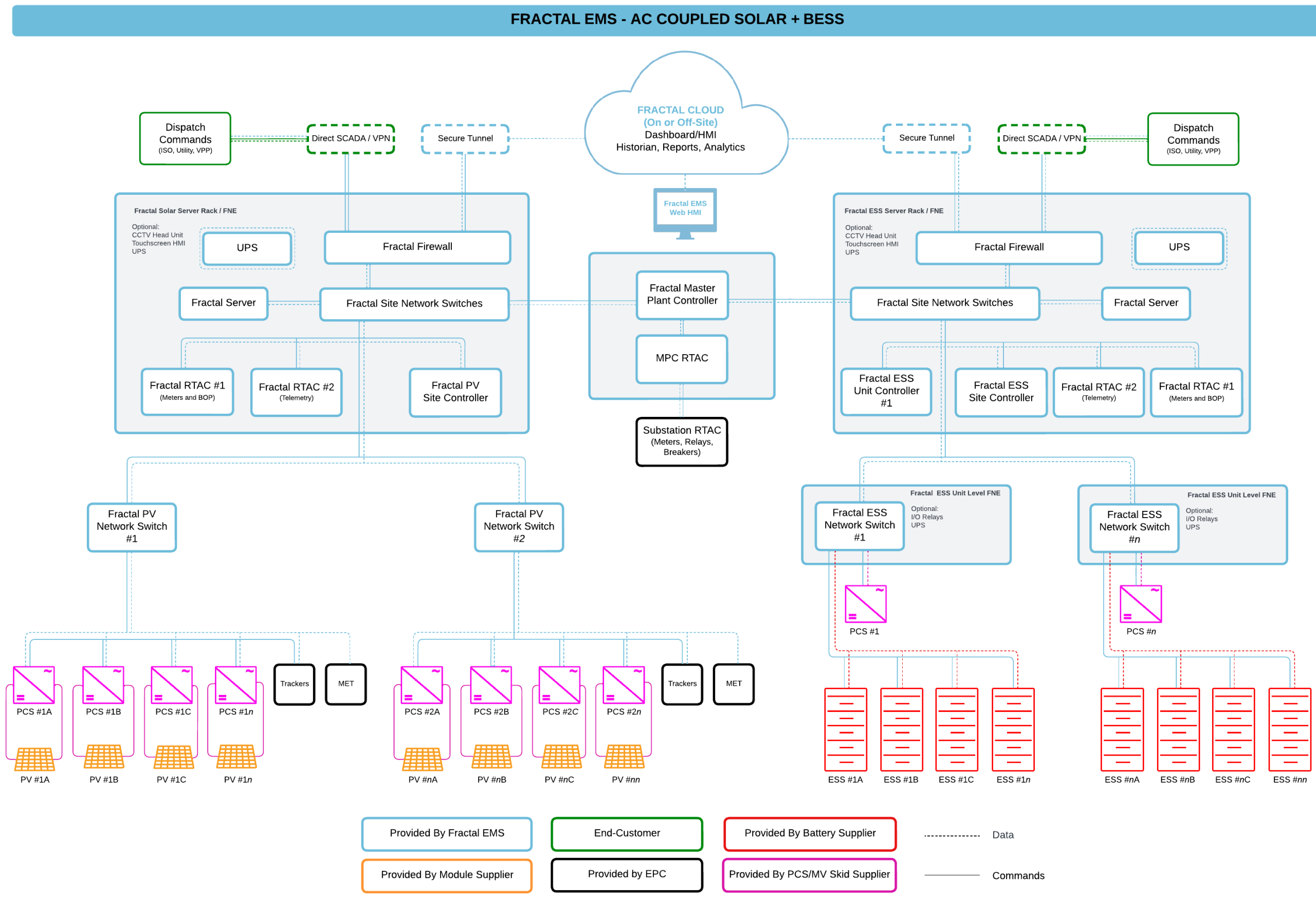

Suitability. Designed for AC coupled solar + storage projects where Fractal EMS provides both the Solar PV, BESS, and Master Plant controls. Fractal can provide the applicable BESS controls solution (DC Block Only, Supplier with Local Controller, Supplier with Site Controller) based on the equipment selection.
Fractal EMS provides:
- EMS Hardware: Fractal provides the hardware for FNEs, Solar PV and BESS controllers (unit, site, and MPC), local server, communication devices, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMI with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points directly from the equipment.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.

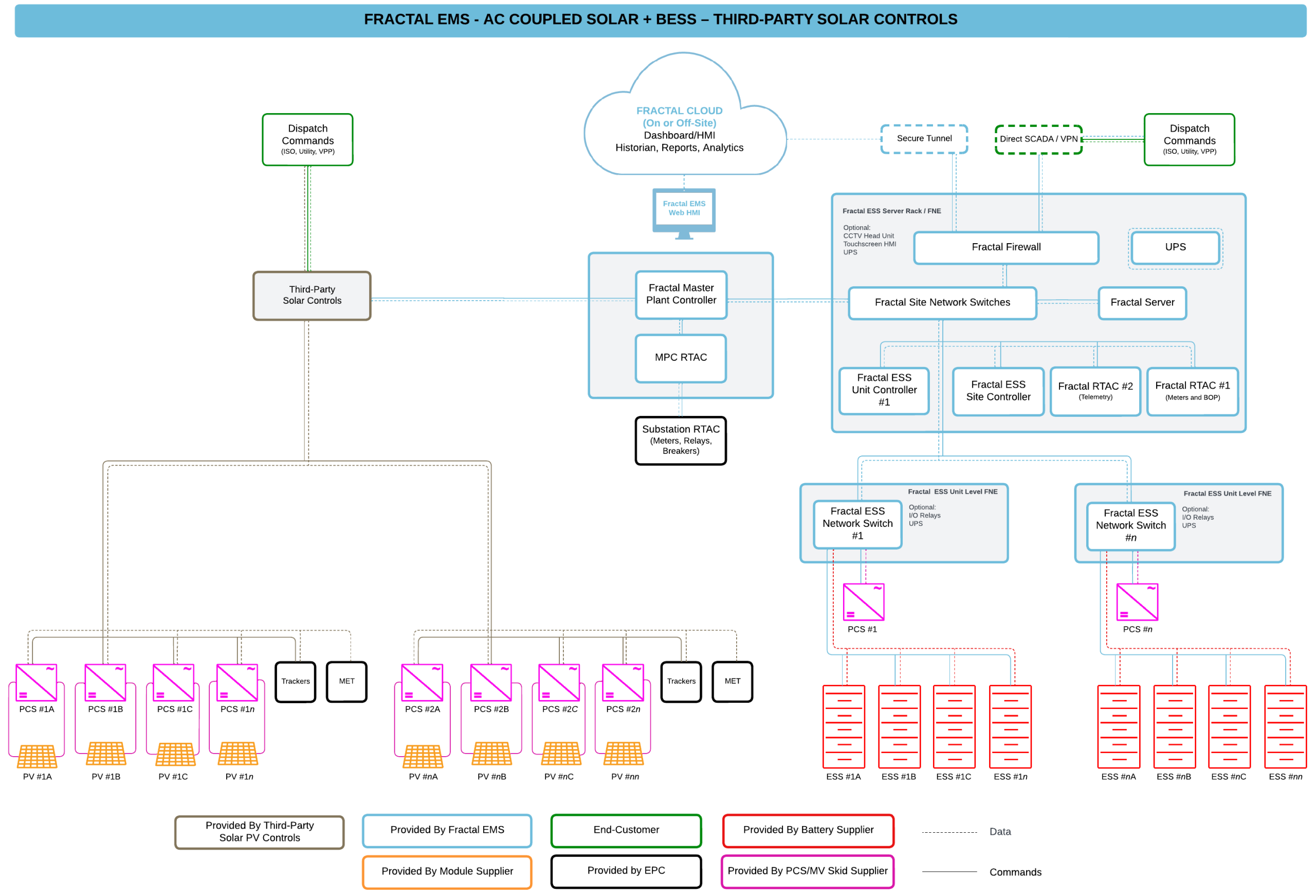

Suitability: Designed for AC coupled solar + storage projects where Fractal EMS provides the BESS controls and Master Plant controls, but a third party provides the Solar PV controls. Based on equipment selection, Fractal can provide the applicable BESS controls solution (DC Block Only, Supplier with Local Controller, Supplier with Site Controller).
Fractal EMS provides:
- EMS Hardware: Fractal provides the hardware for FNEs, BESS controllers (unit, site, and MPC), local server, communication devices, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more. A different vendor provides the Solar PV plant controls.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMI with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points directly from the equipment.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.

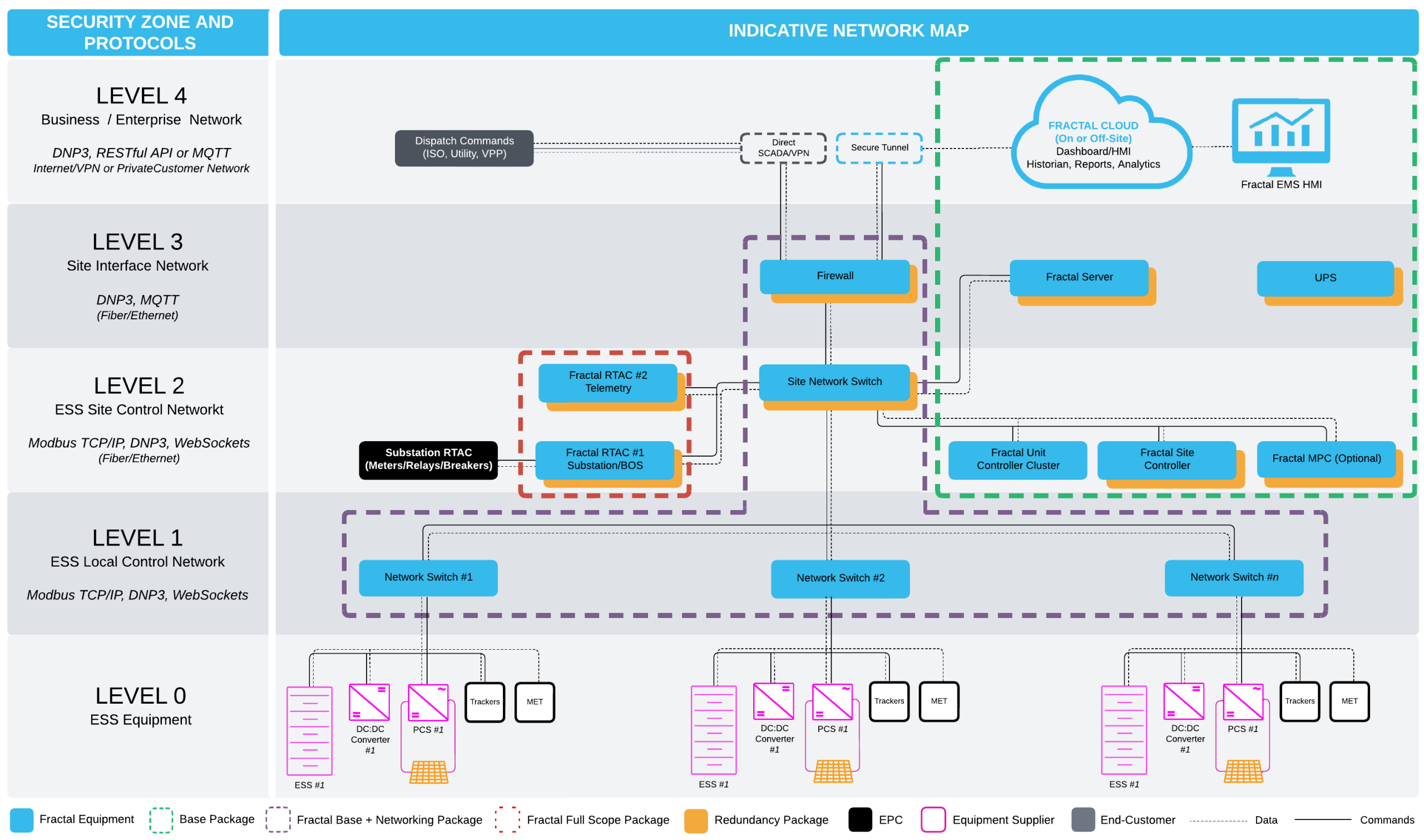

Suitability: Designed for DC coupled solar + storage projects (it is highly recommended that one EMS provides both the Solar SCADA and BESS EMS). Fractal provides a unified EMS with joint controls, HMI, and server.
Fractal EMS provides:
- EMS Hardware: Fractal provides the hardware for FNEs, Solar PV and BESS controllers (unit, site, and MPC), local server, communication devices, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMI with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points directly from the equipment.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.

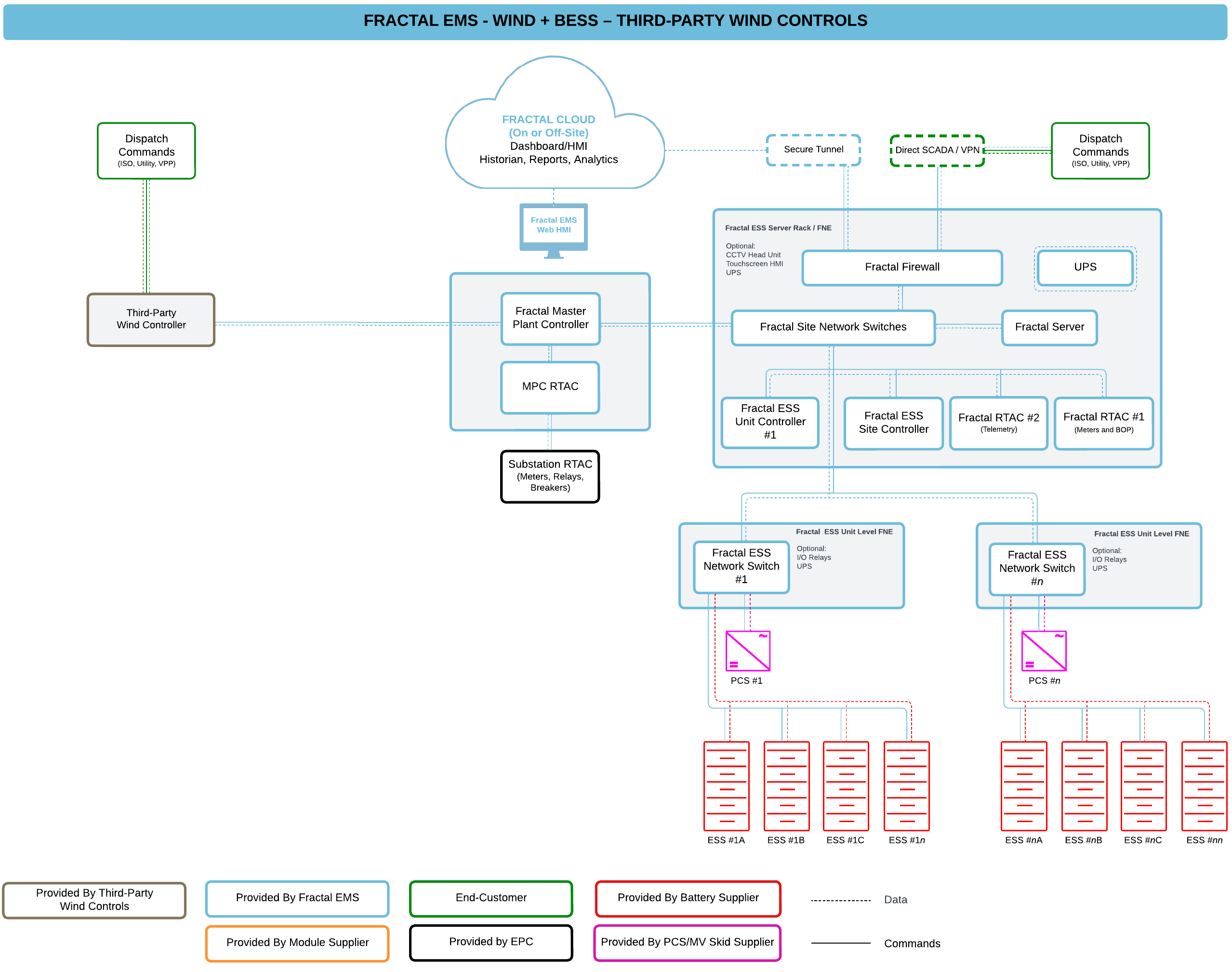

Suitability: Designed for wind + storage projects where Fractal EMS provides the BESS controls and Master Plant controls, but a third party provides the Wind power plant controller. Based on the equipment selection, Fractal can provide the applicable BESS controls solution (DC Block Only, Supplier with Local Controller, Supplier with Site Controller).
Fractal EMS provides:
- EMS Hardware: Fractal provides the hardware for FNEs, BESS controllers (unit, site, and MPC), local server, communication devices, networking equipment, RTACs, UPS, I/O relays, fiber patch panels, and more. A different vendor provides the wind plant controls.
- Networking: Fractal designs, procures, installs, configures, and tests all the networking equipment necessary to meet project and cybersecurity requirements.
- Communications: Fractal designs (IP schema), procures, installs, and configures (VLAN) all communication.
- SCADA: Fractal designs, procures, installs, and configures the RTACs necessary to communicate off-site (to Utility, TSP, QSE, and ISO) and on-site (to meters, transformers, and breakers), including coordinating the points list for the SCADA equipment.
- Integration: Fractal provides equipment driver development, control narrative, design packages, integration, and troubleshooting.
- Commissioning: Fractal performs unit-level commissioning, site acceptance testing, and ISO/utility performance testing.
- HMI: Fractal provides local and remote HMI with dashboards, historians, performance reports, analytics, and scheduling. The Fractal historian captures the OEM data points directly from the equipment.
- O&M: Fractal provides options for 24/7 monitoring and bid optimization services.
